SFP-70D2-DUAL for SF and MT

概述

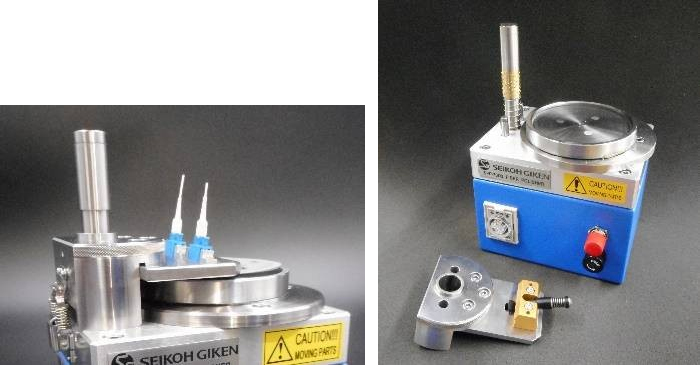

采用配备精密导向轴的SFP-70D2-DUAL 进行SF和MT研磨

采用配备精密导向轴的SFP-70D2-DUAL进行SF和MT研磨

特征

单芯研磨

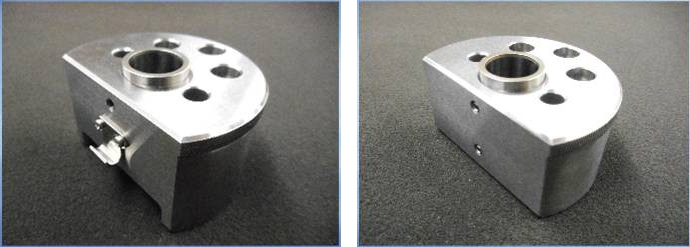

用于单芯研磨的新型RP72-37SF压块可使用在所有现有的SFP-70D2 IPC研磨夹具上
符合人体工程学，设计简单，易于使用
周期时间短（返工通常为2分钟）
多种支架可供选择，如裸光纤研磨、高功率激光和手术激光连接器的重新研磨

多芯研磨

使用RP72-37MT-B压块进行MT研磨

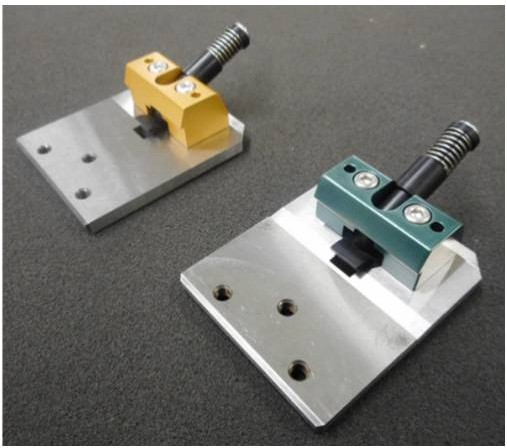

通过使用单杆MT夹具，可以轻松完成高性能MT
研磨，就像单纤维抛光一样。
适用于全步骤研磨和返工

Polishing Result (Full Step N = 5 pcs for each type)
PH072-MT-1Q (MT/PC)

No.	Ferrule X angle (ｰ)	Ferrule Y angle (ｰ)	Ferrule X radius (mm)	Ferrule Y radius (mm)	Min fiber height (nm)	Max fiber height (nm)	Max core dip (nm)	Minus coplanarity (nm)
1	-0.06	-0.04	5974	301	2235	2356	18.9	82.9
2	0.09	0.00	8629	343	2235	2316	14.9	55.6
3	0.08	0.01	6742	327	2207	2337	14.5	83.1
4	0.07	-0.04	7180	288	2210	2353	18.7	89.5
5	-0.07	0.00	4842	285	2194	2366	29.4	98.9

PH072-MT8A-1Q (MT/APC)

No.	Ferrule X angle (deg)	Ferrule Y angle (deg)	Ferrule X radius (mm)	Ferrule Y radius (mm)	Min fiber height (nm)	Max fiber height (nm)	Max core dip (nm)	Minus coplanarity (nm)
1	0.06	8.01	6757	288	2277	2474	-	112.6
2	0.05	8.01	17770	279	2217	2306	-	55.3
3	0.04	7.97	33920	359	2225	2305	-	62.5
4	0.02	7.99	31281	269	2258	2362	-	53.8
5	0.02	8.02	6700	287	2223	2363	-	83.1

Disclaimer- 1) Polishing method with use of fibrous material is patented in the U.S (US patent No. 6106368). 2) A ferrule assembly with fiber protrusion between 0.5um and 2.5um after polishing is patented in the U.S. (US patent No. 5743785).

SFP-70D2-DUAL Standard Package

Description	Part Number	Qty
Main unit	SFP-70D2-MT	1
Holder weight for S/F polishing	RP72-37SF	1
Holder weight for MT polishing	RP72-37MT-B	1
Accessories
Cable hanger	FP-HR	1
Allen wrench set	FP-TS	1
AC/DC adapter + cable	AD20	1
1 AMP fuse	FP-F1A	10
Grease	FP-GS (27g)	1
Operation manual	FP-IM70D2-DU	1

Polishing holders are separately sold
