SFP560A系列研磨机

SFP-560A

DPC “Dynamic Pressure Control”模式 (Patent Pending) 使用气动平行加压方式研磨光纤产品，例如： Fiber arrays, MT和Heavy cables,IPC mode 独立加压模式: 使用以往四角加压原理研磨光纤产品.

产品资料下载

特点 / 优势

设计

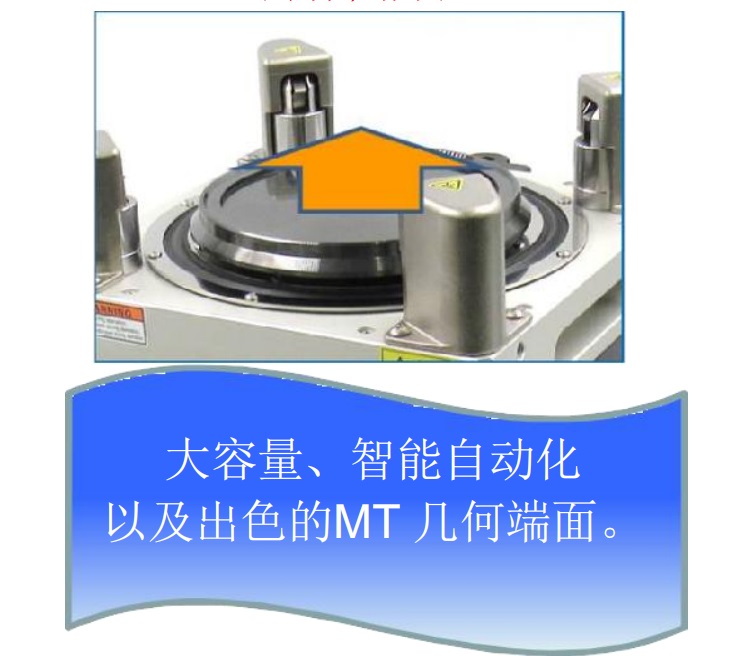

开放的空间: 获得研磨夹具上方所有的空间

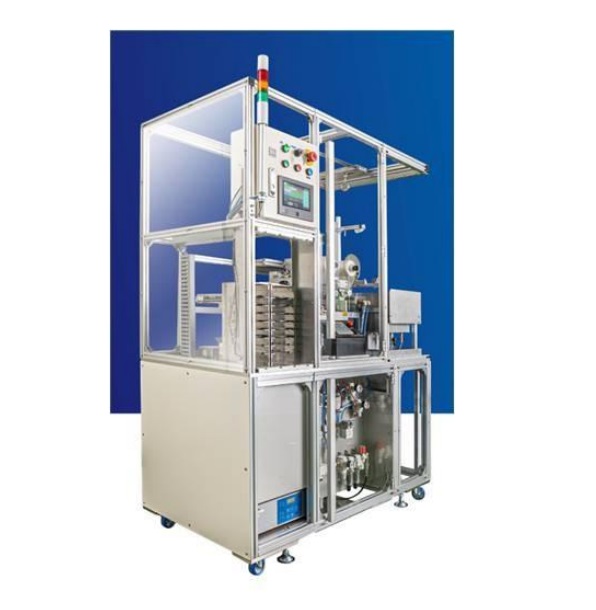

适合自动化生产线运用
传承SFP-550系列的简单

研磨方式
DPC “Dynamic Pressure Control”模式 (Patent Pending) 使用气动平行加压方式研磨光纤产品，例如： Fiber arrays, MT和Heavy cables
IPC mode 独立加压模式: 使用以往四角加压原理研磨光纤产品.

其他特点
可编程(可记忆多大60种研磨工艺)
支持USB数据传输
支持现有所有550系列夹具
通用电源

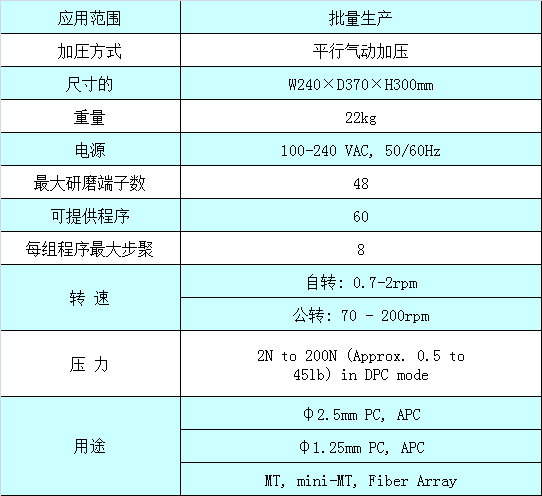

SFP-560A 规格参数

Weight:	22Kg
Dimensions:	W240W x D370 x H300 (mm)
Polishing Method:	Rotation & Revolution
Pressure Control	2N to 200N when polishing in DPC mode
Power:	100-240 VAC, 50/60H
Required Air	0.6MPa to 0.8MPa
Motor Speed:	Revolution 70 to 200rpm Rotation 1/100 of rev. speed.
Film Size:	5” (127mm)

支持研磨夹具及配件

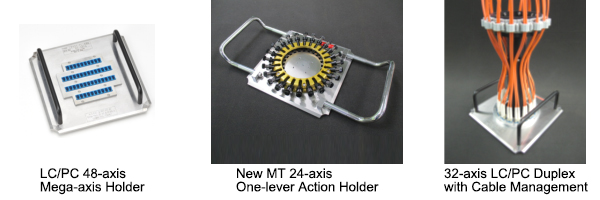

I.P.C. HOLDERS
Description:	Platinum Holder Part #
FC/PC	PH55-FP-20 or 24
FC/APC	PH55-FP8*-18-I or 24
SC/PC	PH55-CP-20, 24 or 32
SC/APC	PH55-CP8*-18-I or 24 or 32
ST/PC	PH55-SP-20 or 28
LC/PC	PH55-PL-24 , 40 or 48
LC/PC High Pressure	PH55-PL-24HP, 40HP or 48HP
LC/APC	PH55-PL8A-20-B, 40 or 48
LC/APC High Pressure	PH55-PL8A-20HP-B PH55-PL8A-40HP or 48HP
LC/PC Duplex	PH55-PL-32DHP or 48DHP
LC/APC Duplex	PH55-PL8A-32DHP-POR
MU/PC	PH55-PM-24 or 40
MU/APC	PH55-PM8A-20
2.5mm ferrule	PH55-FF-20 or 40
1.25mm ferrule	PH55-FLM-16, 24, 40 or 48
Please contact for connector types not listed. 可根据客户要求定制研磨夹具必须指定ferrule的APC的角度类型（台阶或大锥）根据需要提供IPC研磨的各种固线器装置
MT HOLDERS & ACCESSORIES
Description:	MT Holder Part #
MT/PC Holder	PH55-MT-24S1
MT/PC Holder	PH55-MT-12S1
MT/APC Holder	PH55-MT8A-24S1
MT/PC One-lever Holder	PH55-MT-24SQ1 New
MT/PC Re-polishing Holder	PH55-MT-12R1 New
MT/PC Mega-axis Holder	PH55-MT-36S1 New
Washing station	MT-P-WSH-B
Cable Management	PRM-P-CMH-B
Torque wrench	N3LTDK-MT
Cleaning Brush	MT-P-BRS-B

支持研磨耗材

POLISHING FILMS FOR ZR POLISHNG
Description:	Film Part #
30um Silicon Carbide	GA5D
9um Diamond	DR5D-9U
3um Diamond	DH5D-3U
1um Diamond	DJ5D-1U
Silica	XF5D
*Other types of films and liquid are also available up on request
POLISHING FILMS FOR MT POLISHNG
Description:	Film Part #
Adhesive Removal & Leveling	GC5D
Rough polishing	AR5D
Fiber protrusion	GH5D
Finishing	FM5D-SOAP
*Consumables for slurry polishing are also available upon request
Rubber & Glass Pads Available for various Hardness & Thickness (ask for details): 60, 65, 70, 75, 80, 85 & 90 durometer 4.8, 4.9, 5.0, & 5.05 mm thickness All for 5” diameter For MT polishing, PG5X-490-SR2, tacky glass pad is available, which PSA backing is no longer needed.
