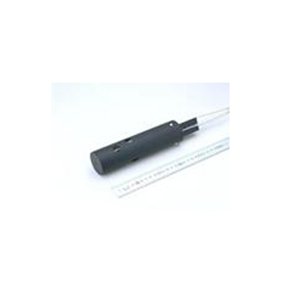

Resonance Type Isotropic Optical Electric Field Sensor OEFS-RC

概述

Resonance Type Isotropic Optical Electric Field Sensor OEFS-RC

Resonance Type Isotropic Optical Electric Field Sensor

Resonance Type Isotropic Optical Electric Field Sensor OEFS-RC



■Outline

This sensor resonates with a specific frequency and the sensitivity improves. For example key less entry signal (315MHz, 433MHs) of a car is measured with this OEFS-RC and it also check the 3D distribution of inside of the car precisely. Working frequency is the one of 150MHz to 950MHz (3dB bandwidth: 10MHz).







■Specifications

Item

Performance

Sensitivity

30μ to 100m V/m

Frequency Response

One specific frequency of 300MHz to 950M

Maximum Input

1V/m

Isotropy

±0.5dB

Sensor Size

φ50mm x 190mm

Output Connector (RF output)

N-J

Working Temperature Range

0°C to 40°C
