Portable Microscope

概述

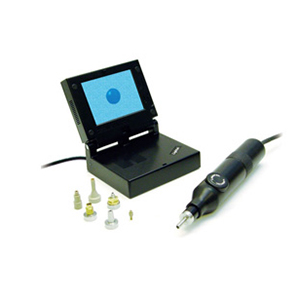

Portable Microscope

Cl-1000




  Video microscope system ideal for installation site
  Enables the user to inspect mounted connector endface
from the other side of adapter
  Connectable to a portable monitor, PC through USB and
stationary monitor
  Easy adapter replacement allows the microscope to
inspect a wide range of connector types
Cl-1000
Dimension(mm)/Weight(kg)
(Scope)
175 x φ32 / 0.16
Dimension(mm)/Weight(kg)
(monitor)
105 x 95 x 45 x / 0.45
Magnifications 180 x (3.5"LCD)
Light Source Blue LED
Power 110-220V 50/60Hz
9.6V AC/DC adapter
Internal rechargeable battery
Battery Life 4 hours
1 hours for charging
Monitor 3.5"LCD

Optional Items
USB Video Capture Device Available
Connector Attachment 2.5mm ferrule, FC, SC,
1.25mm ferrule, MU, LC,
MTP, MPO,MT-RJ,
MT ferrule
Bunlkhead Attachment FC, SC, MU, LC, ST,
MTP, MPO, MT-RJ
SIM-200 / 400


  Handy type microscope operated with three AAA batteries
  Two magnification types are available (200x or 400x)
  High intensity white LED for clear and enhanced vision
  Detachable φ2.5mm ferrule adapter is equipped as standard accessory
  Other connector adapters are also available as optional. Also laser safety filter is equipped for eye protection
