PM Hybrid Jumper

概述

PM Hybrid Jumper

PM Jumper

PM Hybrid Jumper











PM Jumper







a

Number of Connector

PM jumper

PJ

PM pigtail

PP

b

Connector Type

See Table 2

c

Axis
(See Table 3)

Free (FC)

F

X (FAST)

X

Y (SLOW)

Y

O (other)

O

d

Wavelength

1310nm

13

1550nm

15

e

Length

10m

10

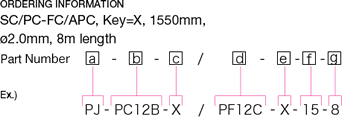

PM Hybrid Jumper







a

Number of Connector

PM jumper

PJ

b

Connector Type

See Table 2

c

Axis
(See Table 3)

Free (FC)

F

X (FAST)

X

Y (SLOW)

Y

O (other)

O

d

Connector Type

See Table 2

e

Axis
(See Table 3)

Free (FC)

F

X (FAST)

X

Y (SLOW)

Y

O (other)

O

f

Wavelength

1310nm

13

1550nm

15

g

Length

10m

10





 ・ Available ER ≧30dB Jumper







Table 2. Connector Type



Type

φ1

φ2

PC
RL>=50dB

FC

PF11

PF12B

SC

PC11

PC12B

MU

PU11

-

LC

PL11

-

Angle PC
RL>=60dB

FC narrow key (R)

PF11A

PF12C

FC wide key (N)

PF11AN

PF12CN

SC

PC11A

PC12C







Table 3. Polarization Axis

Polarization

F (free)

X (FAST)

Y (SLOW)

O (other)

Direction of the stress producing members against the key

The stress producing members are free to the key (the key is not fixed)

The stress producing members are horizontal to the key : 0°±3°

The stress producing members are perpendicular to the key : 0°±3°

The stress producing members are at the designated angle to the key
