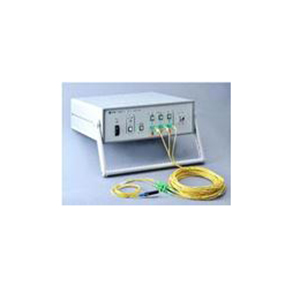

Miniaturized Isotropic Optical Electric Field SensorOEFS-S1B

Miniaturized Isotropic Optical Electric Field SensorOEFS-S1B



■Outline

Miniaturized Isotropic Electric Field Sensor (OEFS-S1B) is developed for measuring 3D Electric Field of localized area with isotropy.
The sensor consists of a limited use of metal such as antenna elements and small mirror to avoid generating electric field noises by metal parts themselves.
This system therefore will not distort the surrounding electric field and is suitable for measuring the near field pattern of an antenna for high frequency.







■Specifications

Item

Performance

Note

Sensitivity

0.5 to 1000V/m



Frequency Response

200MHz to 10GHz



Maximum Input

10000V/m



Isotropy

±0.5dB

3D(x, y, z) individual output

Sensor Size

φ12 x 70mm



Output Connector (RF output)

N-J



Working Temperature Range

0°C to 40°C
