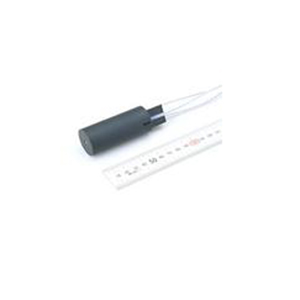

Isotropic Optical Electric Field Sensor OEFS-NS

概述

Optical Electric Field Sensor, OEFS-S1 is 40dB higher sensitivity than OEFS-S1B. The reason is that the antenna length is longer and the electrode structure is improved.

Outline

Optical Electric Field Sensor, OEFS-S1 is 40dB higher sensitivity than OEFS-S1B. The reason is that the antenna length is longer and the electrode structure is improved.

Specifications

Item	Performance
Sensitivity	5m to 10V/m
Frequency Response	100kHz to 3GHz
Maximum Input	100V/m
Isotropy	±0.5dB
Sensor Size	φ30mm x 70mm
Output Connector (RF output)	N-J
Working Temperature Range	0°C to 40°C
