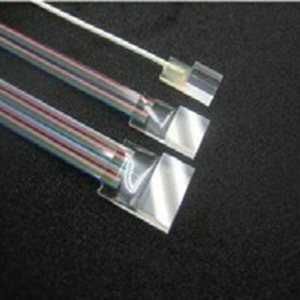

Features

· Fiber array is an essential component used in the WDM systems to connect optical fiber and AWG chip

· Our precision processing technology, which we have developed for years, provides high fidelity, quality and core pitch accuracy

· High quality Seikoh-Giken connectors are used at the end of fibers



· High precision core pitch accuracy



· High reliability

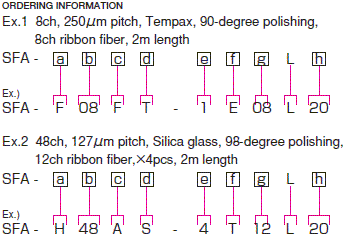

a

Pitch

250μm

F

127μm

H

1ch.

N

b

Channel

1ch.

01

8ch.

08

16ch.

16

32ch.

32

48ch.

48

c

Polishing Angle

90 degree

F

98 degree

A

82 degree

R

d

Material

Tempax (Borofloat)

T

Pyrex glass

P

Silica glass

S

e

Q'ty of ribbon fiber

4pcs (example)

4

f

Fiber Type

φ0.25 UV

S

4ch. ribbon fiber

F

8ch. ribbon fiber

E

12ch. ribbon fiber

T

φ0.9(SMF-28)

B

g

channel per ribbon fiber

8ch ribbon fiber (example)

08

h

Length

2.0m (standard)

20



Specification

Material

Tempax (borofloot) (CTE : 3.3×10-6)

Pyrex   (CTE : 3.25×10-6)

Silica glass (CTE : 5.0 X 10-7)

Channel

1, 8, 16, 32, 48ch (other channel available)

Pitch

127, 250μm

Pitch Accuracy

± 0.5μm

Fiber

SMF28e, Ribbon fiber (4, 8, 12ch.)

Polishing Angle

90, 98, 82 degree
